The complete double-door set tested and certified for one hour of fire resistance in accorance with AS 1530.4:2014. Suitable for application in commercial, industrial, and residential spaces. This door set is applicable to Pair Doors for all fire-resistant functions including the separation of a building’s fire compartments, protection of exit routes, and high fire risk areas such as kitchens and laboratories. Spence Doors’ manufacturing capabilities are suited to bulk manufacture of this door set custom to its purpose in your project.
Overview
The Pair Door configuration features Two Door Leafs + 1.6mm Pressed Metal Frame or a Timber Frame + Leading Edge Meeting Stiles. The door leafs are 48mm thick and may be up to 3000mm x 1500 / 1500mm for a standard swing doorset. Featuring a Pyropanel fire-resistant core with a Hardboard or Greenboard internal frame. All other features are customisable including frame function, door skins & cladding, and inclusion of accessories and hardware.
Compliance
All Spence Doors’ Fire-Rated doors feature intumescent seals around the internal frame; designed to expand under exposure to extreme heat. Paired with a Pyropanel fire-resistant core, this forms a door set capable of maintaining its fire resistance without the need for Fire Bolts. This is imperative for the door’s safety as an activated Fire Bolt fixes the door shut thereby rendering it inoperable. This poses a safety concern on two fronts:
Pair Doors also present a new gap for fire passage relative to single door sets. The vertical section between the two door leafs must be sealed in order to uphold tested and certified Fire-Rated standards. This is fulfilled with Meeting Stiles fitted along each leaf's leading edge.
More Information
See an overview of Fire-Rated Door Set Australian Standards here or contact the Spence Doors team for more information.
Standard (Pair)
Cat & Kitten
Double-Acting (Hinge or Pivot)
Restaurant
Internal (Apartment Entry, Corridor etc.) w/ Pressed Metal Frame
Featuring MDF Skin + 1.6mm Zincanneal Frame + J-Bar Meeting StilesKey specifications of this door set and its capability in fulfilling various door swing functions.
Door Leaf Thickness: 48mm
Standard Door Leaf Weight: 22 kg/m²
Core: Pyropanel fire-resistant core
Internal Frame: Hardboard or Greenboard construction
Max Leaf Size: 3000mm x 1500mm*
Skin Options: MDF | Ply | Tempered Hardboard
* With the following exceptions:
All configurations of this fire-rated doorset are approved to AS1530.4:2014.
Fire-rating approval applies to fitting in the following wall types:
The standard configurations Spence Doors will quote as defined by the setting and requirements of its application. These door sets are made-to-order and so can be customised to suit your project, these are the starting configurations of door leaf, skin, frame, and cladding curated for typical application suitability and budget considerations.

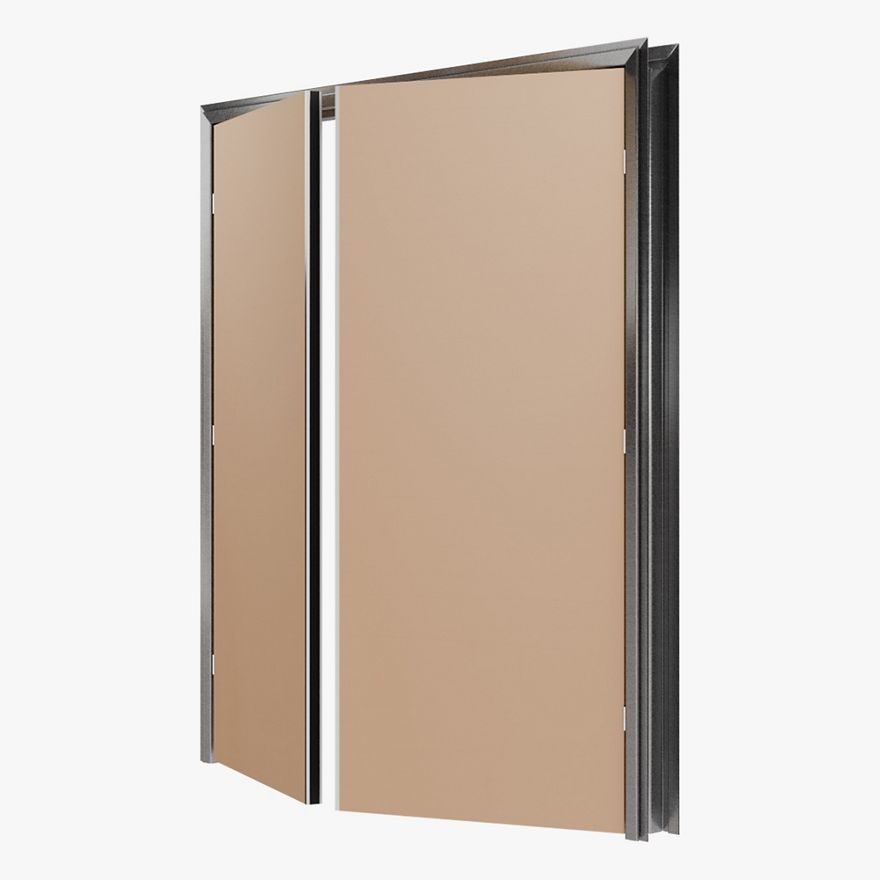

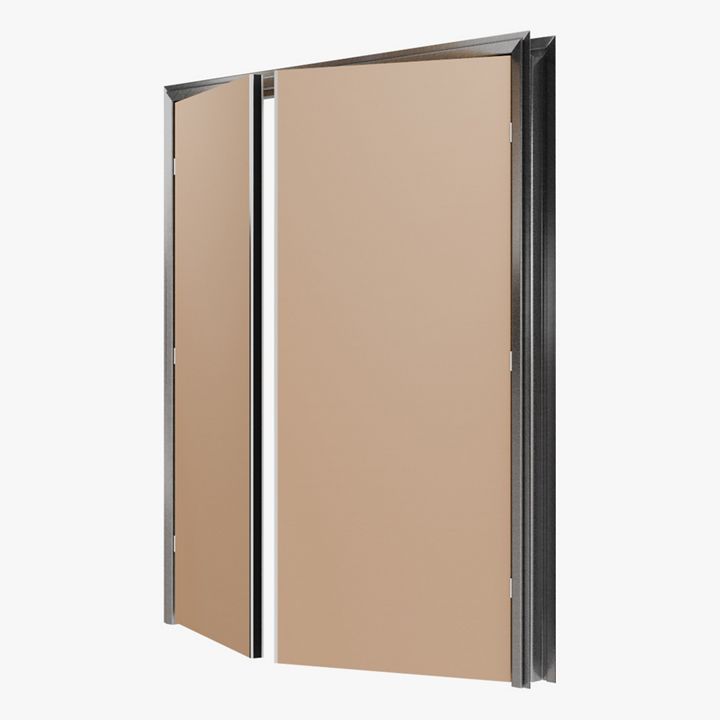

An internal door in low-moisture spaces is typically fitted with MDF skins. This is the most effective material and is a smooth substrate that hosts a uniform paint finish for premium design spaces.
Skin: MDF
Frame: 1.6mm Zincanneal or Timber
Cladding: None
|  |
Internal spaces exposed to high moisture such as bathrooms are fitted with FR Ply skins. This is a species of Plywood tested and certified specially for fire resistance. Ply offers far greater hydroponic / moisture-resistant qualities than MDF and thereby can withstand exposure to moisture without warping.
Skin: FR Ply
Frame: 1.6mm Zincanneal
Cladding: None
A configuration for interior settings that require maximum protection against external factors. Metal Clad facings provide an additional protective measure to extend the door set’s lifespan and mitigate the risk of direct impact or intrusion. This suited to the likes of Security Rooms or sensitive areas in Commercial or Industrial spaces.
Skin: FR Ply
Frame: 1.6mm Zincanneal
Cladding: 0.55mm Zincanneal Metal Faces
This door set may be installed in sheltered outdoors spaces. Such spaces are exposed to the elements and so must be fitted with FR Ply skins provided their moisture-resistant quality.
Skin: FR Ply

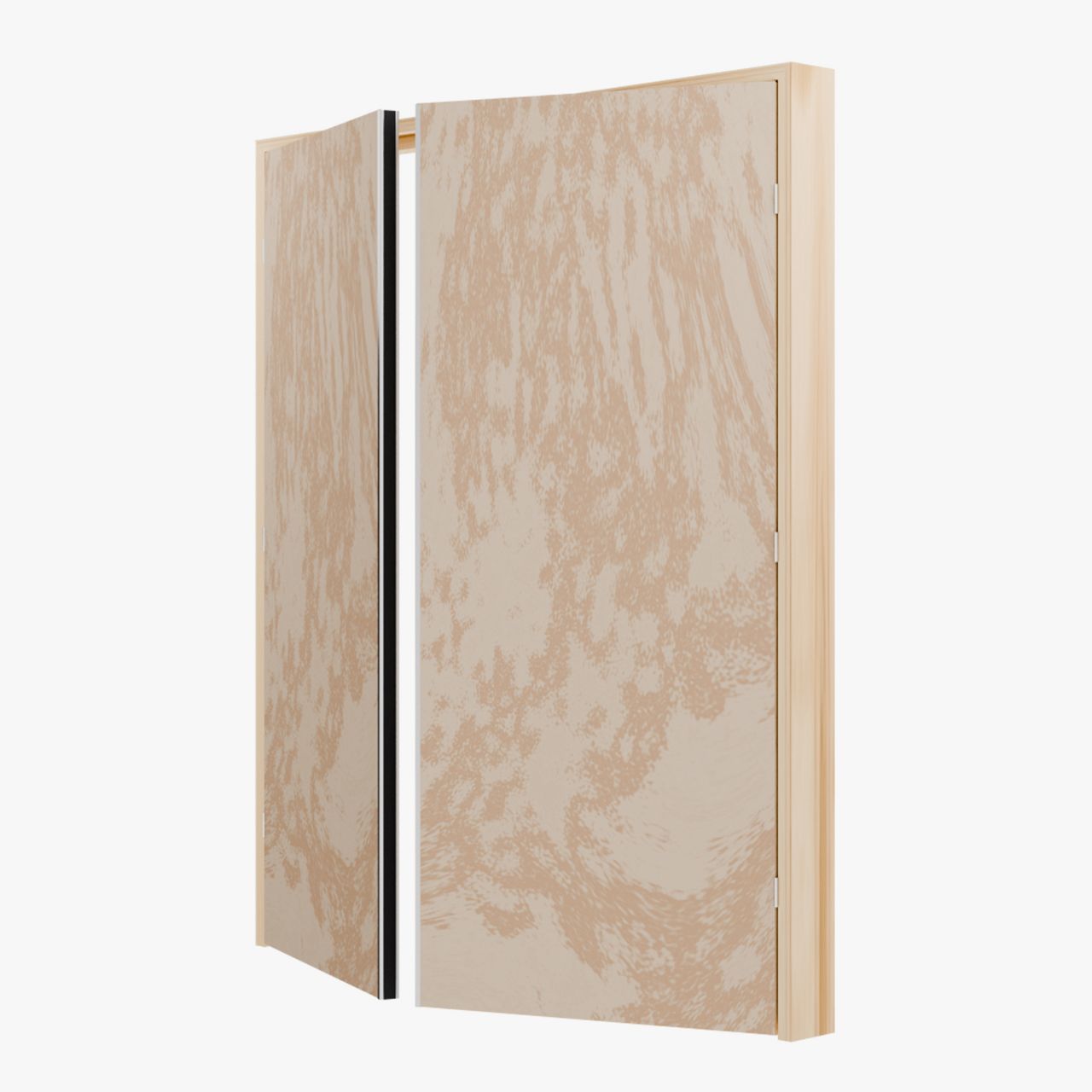

Frame: 1.6mm Zincanneal or Timber
Cladding: None
|  |
This doorset is curated for sheltered outdoor settings that require high protection against external factors (risk of direct impact, intrusion, weather elements etc.). Metal Clad facings provide an additional protective measure to extend the door set’s lifespan and mitigate the risk of direct impact or intrusion. Metal capping around the edges of the door leaf completely seals it against weather exposure to assist in elongating the doorset's longevity.
Skin: FR Ply
Frame: 1.6mm Zincanneal
Cladding: 0.55mm Zincanneal Metal Faces Metal Facings + Capping
This is a complete door set comprising two 48mm door leafs, a pressed metal or timber frame, and meeting stiles + options for hardware preparation or supply.
The Pair Doorset features two door leafs to the following specifications:
Thickness: 48mm
Standard Door Leaf Weight: 22 kg/m2
Core: Pyropanel fire-resistant core
Internal Frame: Hardboard or Greenboard construction
Max Leaf Size: 3000mm x 1500 / 1500mm*
Skin Options: MDF | FR Ply | Tempered Hardboard
* With the following exceptions:
Size: Up to 3000mm x 3000mm
Thickness: Minimum 1.6mm
Material Options: Zincanneal | Galvabond | Stainless Steel 316
Profiles: See all Fire-Rated Metal Frame profiles here.
Installation: The frame on a Fire-Rated Door Set requires backfilling. This can be completed as an optional extra by Spence Doors during manufacture or can be completed by installer with mortar or other Spence Doors approved material.
Hinge and Latch Preparations
These preparation are made to the frame by standard - see below images (latch plate not included, shown for visual reference). The number of hinge preparations is dependent on door leaf weight and dimensions.
Recommended minimum number of hinges is a minimum of 1 hinge per 25kg.
Non-Cladded:
Metal Cladded:
Timber Veneer Cladded:
Spence Doors also offer complete hardware sets for specific applications including Door Closer, Lever, Lock etc.
See the hardware sets that meet a 2-Hour Fire-Rating under Extras.
Double-Acting Doors
Double-Acting Doors require additional hardware in order to uphold their Fire-Rating. Bullnose Meeting Stiles must be fitted to both vertical edges of the door leaf to to seal the doorset for fire resistance purposes - see below top-down illustration.
Pair Doors present a new gap for fire passage relative to single door sets. The vertical section between the two door leafs must be sealed in order to uphold tested and certified Fire-Rated standards. This is fulfilled with Meeting Stiles fitted along each leaf's leading edge.
Spence Doors recommends J-Bar Meeting Stiles to be specified for this purpose - see illustration below. See more on Meeting Stiles here.
As this door set is made-to-order, alterations may be made to its construction to be purpose-built for your application. This includes door face claddings, door leaf, accessories, and additional framing components & seals.
Transom is available with this door set for vertical extension.
The Transom is filled with a fire resistant panel. It is tested and certified for specification in this doorset to the following:
Max Leaf Size (H x W): 3000 x 1500 / 1500
Max Panel Size (H x W): 1120 x 3010
A Mullion framing component is available with this door set for lateral extension. This must be used for the purpose of fitting an additional Fire-Rated door leaf; a sidelight cannot be fitted into this door set.
Ventilation Grilles are able to be fitted into each door leaf of this doorset with the exception of Double-Acting function doorsets and Metal Clad doors. Grilles are available in the following sizes:
Size Options (H x W): 300 x 300 | 450 x 450 | 300 x 600 | 600 x 600
Vision Panels may be fitted into each door leaf of this doorset within the following specifications:
Options: 13mm clear glass (up to Rw 38 Acoustically Rated) | 5mm ceramic glass
Size Options (H x W): 300 x 200 | 600 x 100
Through ASSA ABLOY, Spence Doors are partnered with Yale for the specification of complete hardware kit with our doorsets. The Yale Simplicity® Series features two kits tested and certified for fire-rating with this doorset:
Laminates are tested and certified for fitting over particular configurations of the 1 Hour Pair Fire-Rated Doorset. This is a High-pressure laminate (HPL) composed from multiple layers of decorative paper pressed together under high pressure and bonded with resin.
Details: The laminate is 0.8mm - 0.9mm thick dependent on specified laminate. Capable of being fitted over any of the available door skins (MDF, Plywood & Tempered Hardboard).
This doorset may be fitted with Metal Cladding.
Sizing: Available on doors up to 2700 x 1200 / 1200

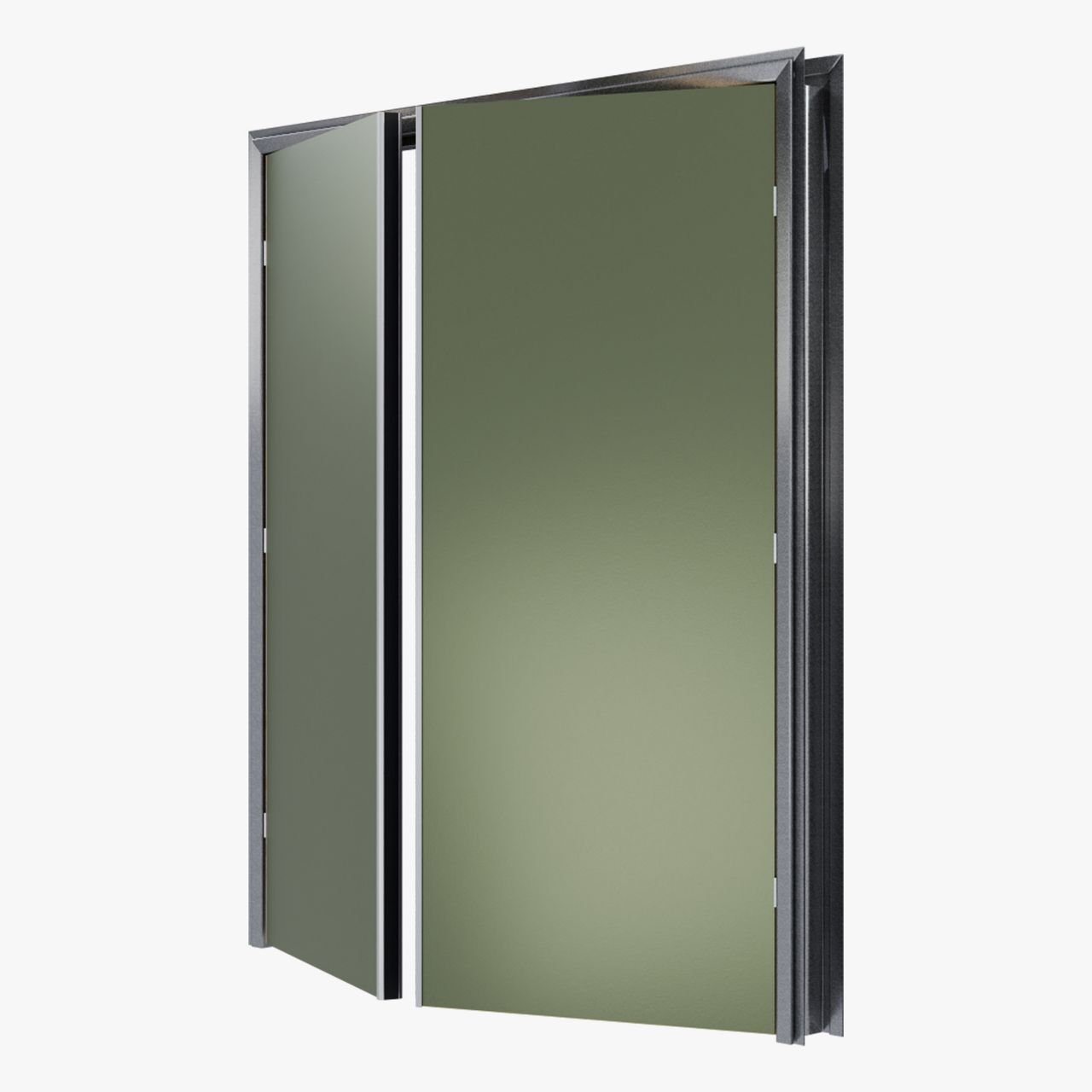

Composition Options: Zincanneal (0.55mm) | Under-capping Zincanneal (1.1mm) | Colorbond (0.55mm) | Stainless Steel (1.6mm)
This doorset may be fitted with Timber Veneers on its face(s).
Sizing: The maximum door leaf size for this doorset to be fitted with Timber Veneers is 2700 x 1200 / 1200.
Compatible Skin: Timber Veneers can be fitted over any of MDF, Ply or Hardboard skins.
This door set may double as an Acoustic Door Set. Capable of achieving a rating of up to Rw 30. However, this Acoustic-Rated configuration reduces the maximum overall size of the doorset to 2420mm x 1020 / 1020mm.

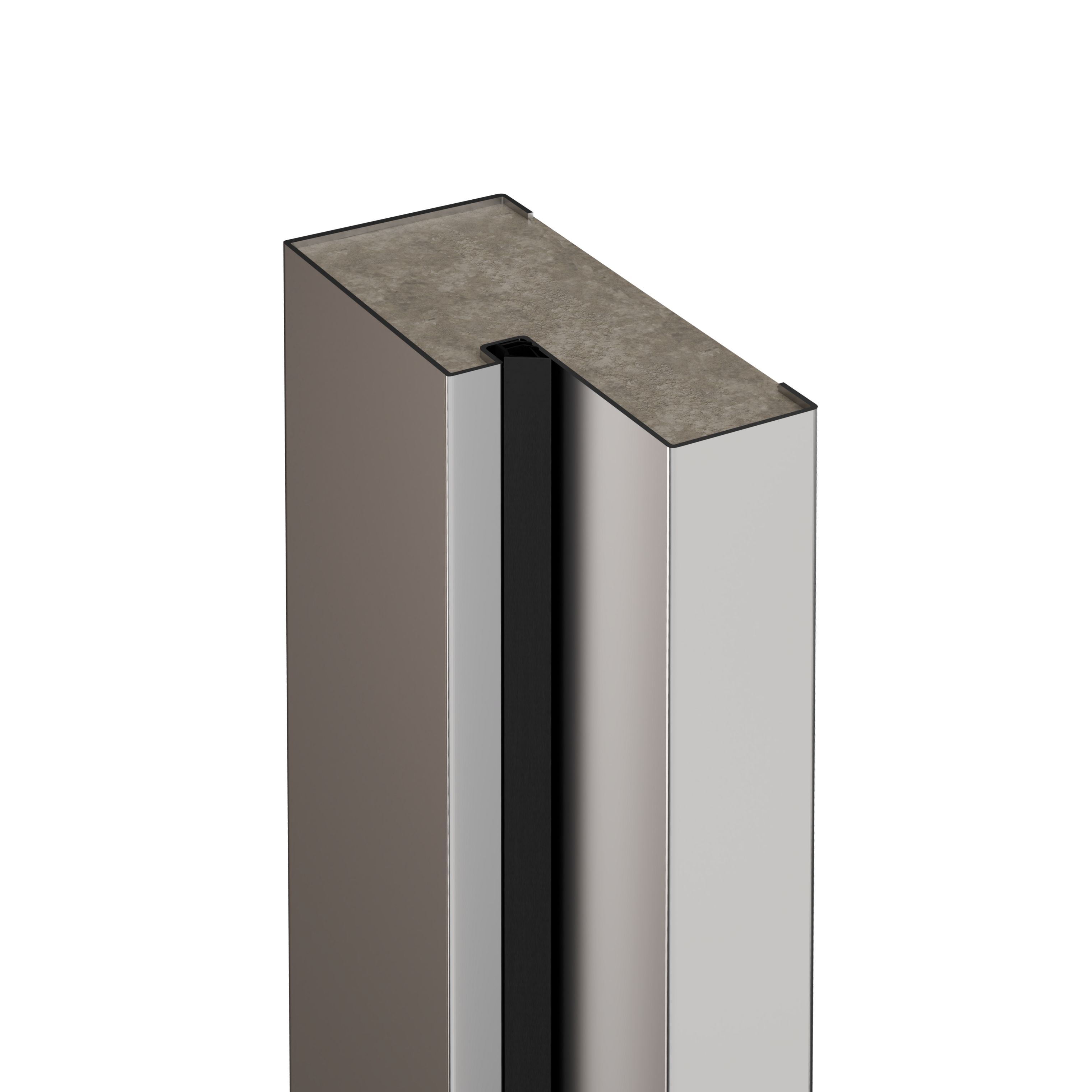

This involves the selection of a Metal Frame profile featuring a return for fitting of a Euroseal. The door leaf’s underside can also be profiled by Spence for fitting of a Bottom Seal for smoke and/or acoustic purposes. Between the Bottom and Euroseal fittings, the door leaf perimeter is effectively sealed against the passage of sound.
As this door set is made-to-order, alterations may be made to its construction to be purpose-built for your application. This includes door face claddings, door leaf, accessories, and additional framing components & seals.
This door set may double as an Acoustic Door Set. Capable of achieving a rating of up to Rw 30. However, this Acoustic-Rated configuration reduces the maximum overall size of the doorset to 2420mm x 1020 / 1020mm.
This involves the selection of a Metal Frame profile featuring a return for fitting of a Euroseal. The door leaf’s underside can also be profiled by Spence for fitting of a Bottom Seal for smoke and/or acoustic purposes. Between the Bottom and Euroseal fittings, the door leaf perimeter is effectively sealed against the passage of sound.
This doorset may be fitted with Metal Cladding.
Sizing: Available on doors up to 2700 x 1200 / 1200
Composition Options: Zincanneal (0.55mm) | Under-capping Zincanneal (1.1mm) | Colorbond (0.55mm) | Stainless Steel (1.6mm)
See more information on Metal Cladding here.
This doorset may be fitted with Timber Veneers on its face(s).
Sizing: The maximum door leaf size for this doorset to be fitted with Timber Veneers is 2700 x 1200 / 1200.
Compatible Skin: Timber Veneers can be fitted over any of MDF, Ply or Hardboard skins.
See more on Veneer Cladding here.
Laminates are tested and certified for fitting over particular configurations of the 1 Hour Pair Fire-Rated Doorset. This is a High-pressure laminate (HPL) composed from multiple layers of decorative paper pressed together under high pressure and bonded with resin.
The laminate is 0.8mm - 0.9mm thick dependent on specified laminate. Capable of being fitted over any of the available door skins (MDF, Plywood & Tempered Hardboard).
See more on Laminates here.
Through ASSA ABLOY, Spence Doors are partnered with Yale for the specification of complete hardware kit with our doorsets. The Yale Simplicity® Series features two kits tested and certified for fire-rating with this doorset:
Vision Panels may be fitted into each door leaf of this doorset within the following specifications:
Options: 13mm clear glass (up to Rw 38 Acoustically Rated) | 5mm ceramic glass
Size Options (H x W): 300 x 200 | 600 x 100
See more on Vision Panels here.
Ventilation Grilles are able to be fitted into each door leaf of this doorset with the exception of Double-Acting function doorsets and Metal Clad doors. Grilles are available in the following sizes:
Size Options (H x W): 300 x 300 | 450 x 450 | 300 x 600 | 600 x 600
See more on Ventilation Grilles here.
A Mullion framing component is available with this door set for lateral extension. This must be used for the purpose of fitting an additional Fire-Rated door leaf; a sidelight cannot be fitted into this door set.
See more on Mullion framing here.
Transom is available with this door set for vertical extension.
The Transom is filled with a fire resistant panel. It is tested and certified for specification in this doorset to the following:
Max Leaf Size (H x W): 3000 x 1500 / 1500
Max Panel Size (H x W): 1120 x 3010
See more on Transom framing here.
