Acoustic Doors
Acoustic doorsets tested and proven for sound attenuation between rooms. All acoustic doors host certified Rw ratings with certificates provided. These are complete door systems composed of sound-rated acoustic door leaves, frames, and acoustic seals. These three components altogether deliver a wholistic acoustic system for specialist spaces like apartment entries, concert halls, commercial sound studios, school music rooms, and office privacy rooms.
Acoustic doors prevent noise interference between spaces where quiet is imperative for privacy, the room's function, hearing protection, and more. Spence Doors acoustic door range is tested and proven for perrformance to the following results:
- Non-Fire-Rated: Single Door (No Cladding): Up to Rw 44 / Single Door (With Cladding): Up to Rw 47 / Pair Door: Up to Rw 42
- 1-Hour Fire-Rated: Single Door: Up to Rw 30 / Pair Door: Up to Rw 30.
- 2-Hour Fire-Rated: Single Door (No Cladding): Up to Rw 31 / Single Door (With Cladding): Up to Rw 40 / Interconnecting Door: Up to Rw 50.
With independent sound measurement test reports from the CSIRO/Acoustic Engineering Laboratories, our Acoustic Door Systems meet Australian Standard AS1191:2002 & ISO 140.3:1195 for acoustic performance. Many of these door sets are also fire tested for simultanous compliance with AS 1530.4:2014.
A Complete Acoustic Doorset System
- The door leaf features a proprietary core specially engineered for resistance against the free passage of sound from one side of a door set to the other.
- The frame may be of metal or timber composition, often in a specialist acoustic profile which features a return/rebate for an acoustic seal to sit inside. Pressed Metal Frames typically require backfilling during installation with mortar for solidity throughout.

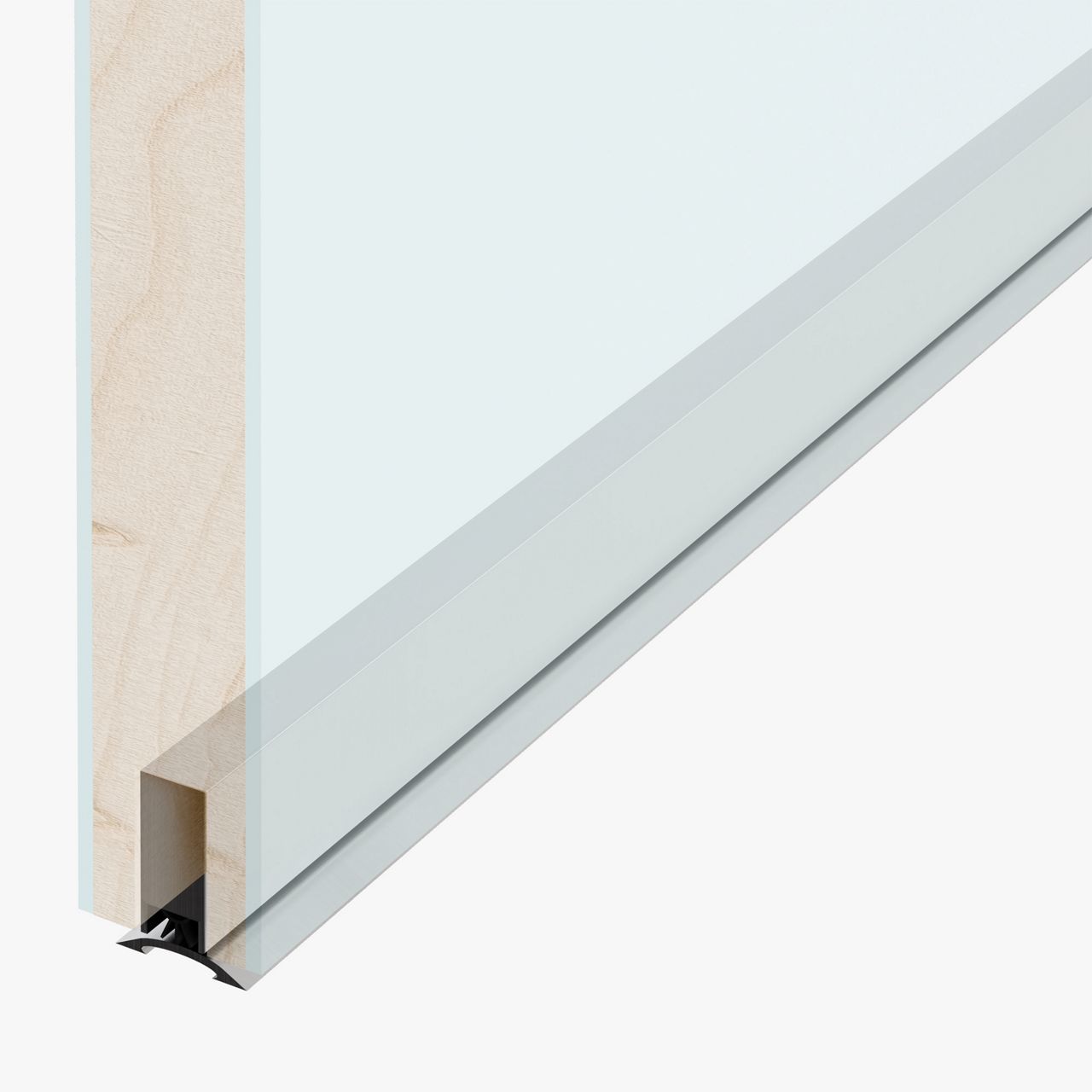

- Seals are fitted to mitigate the passage of air through the gaps in a door set. A typical door set features a 3mm gap along its perimeter (sides and header) and a 3-10mm gap below the door, each of which present an opportunity for sound to pass through.
Products
Non Fire-Rated Acoustic Door Sets
Door sets for acoustic isolation between rooms that do not also require fire rating.1HR Fire-Rated Acoustic Door Sets
Door sets for acoustic isolation between rooms paired with a 1 Hour Fire Rating.2HR Fire-Rated Acoustic Door Sets
Door sets for acoustic isolation between rooms paired with a 2 Hour Fire Rating.
