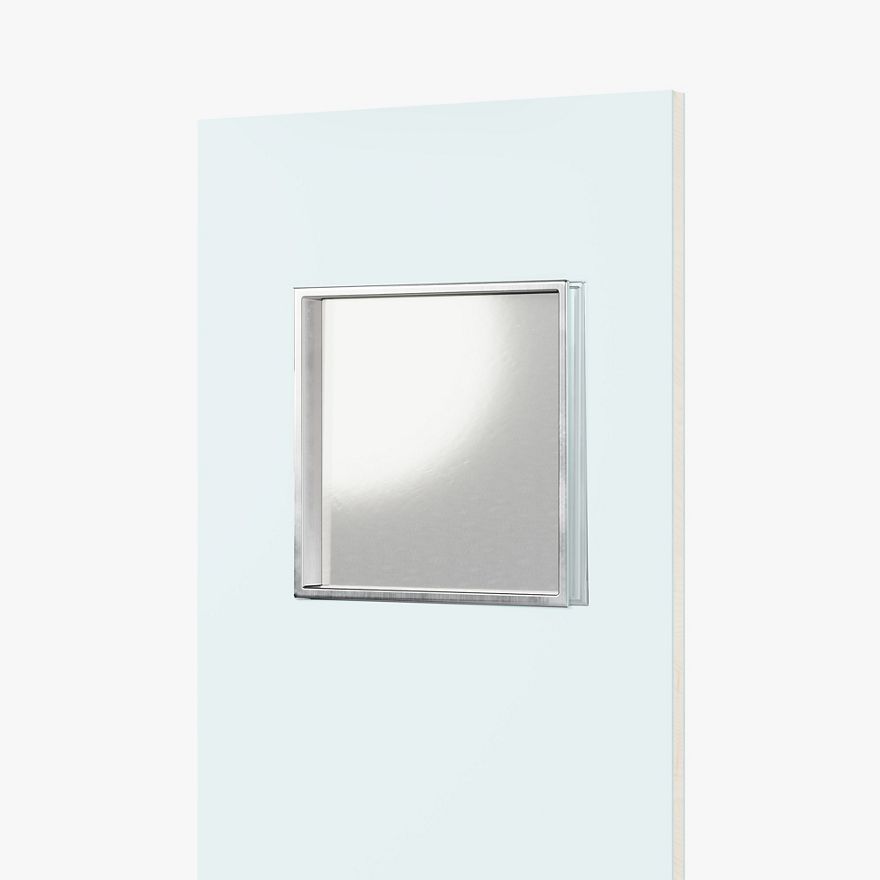

Vision Panel

A door face panel with a window fitting for vision purposes without opening the door. Commonly applied in commercial and healthcare settings where the door separates rooms which require easy visibility between one another.

Metal capping around the frame is included with optional beading. Timber capping may also be specified for a more natural finish in line with a project’s architectural vision. Sizing is customisable to variable visibility and aesthetic needs. A series of glass pane finishes deliver different visuals ranging from clear to translucent. Standard and toughened glass are curated for cost efficiency and strength respectively.

Enquire
Vision window panel in door with clear glass

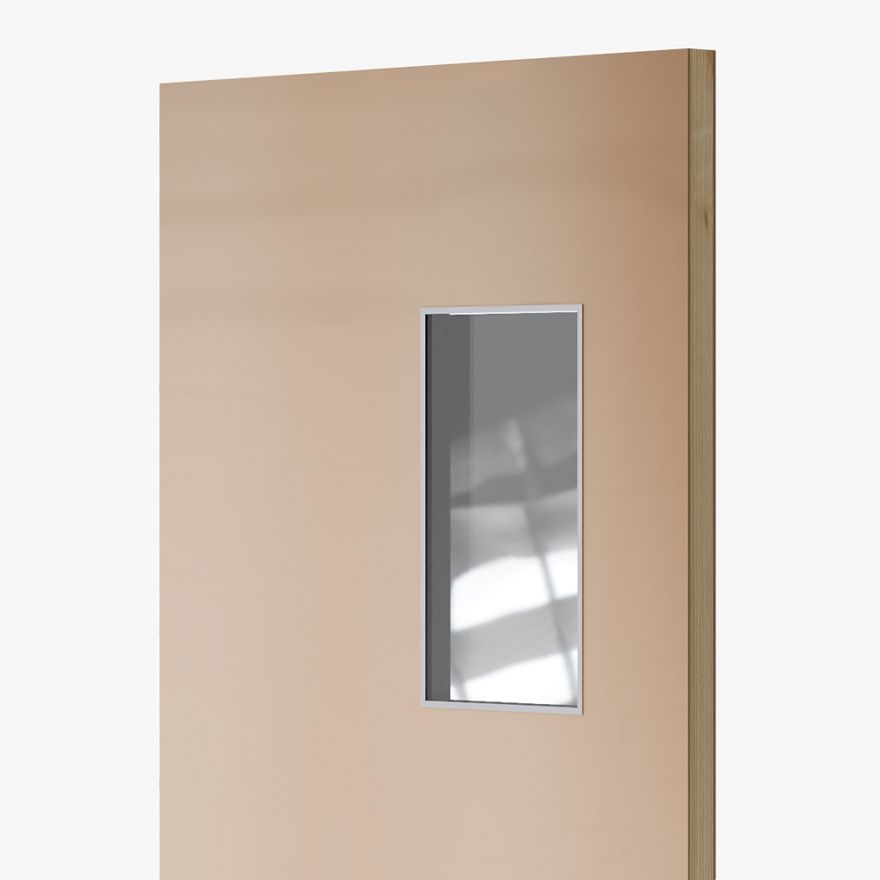

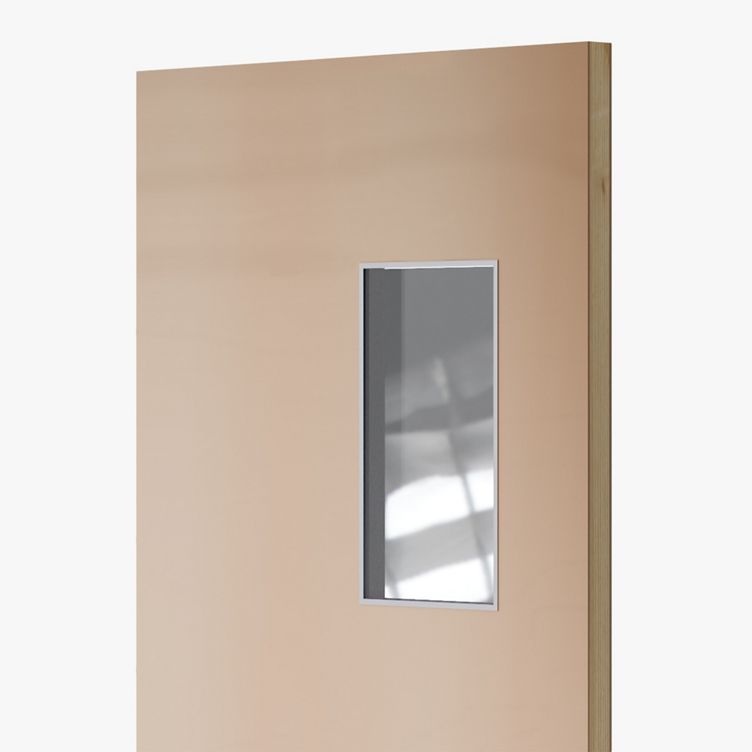

Clear Glass Vision Panel

Glass is clear for full visibility between rooms.
Vision window panel in door with clear glass
Glazing

Glazing

Options in glass panel glazing to finish and strength.

Healthcare Suitable

Healthcare Suitable

Resistant to contaminant transmission between rooms with surface properties suited to healthcare settings.

Specifications

  • Capping Options: Aluminium   |   Timber

    Thickness Options*:  6mm   |   6.38mm   |   10.38mm

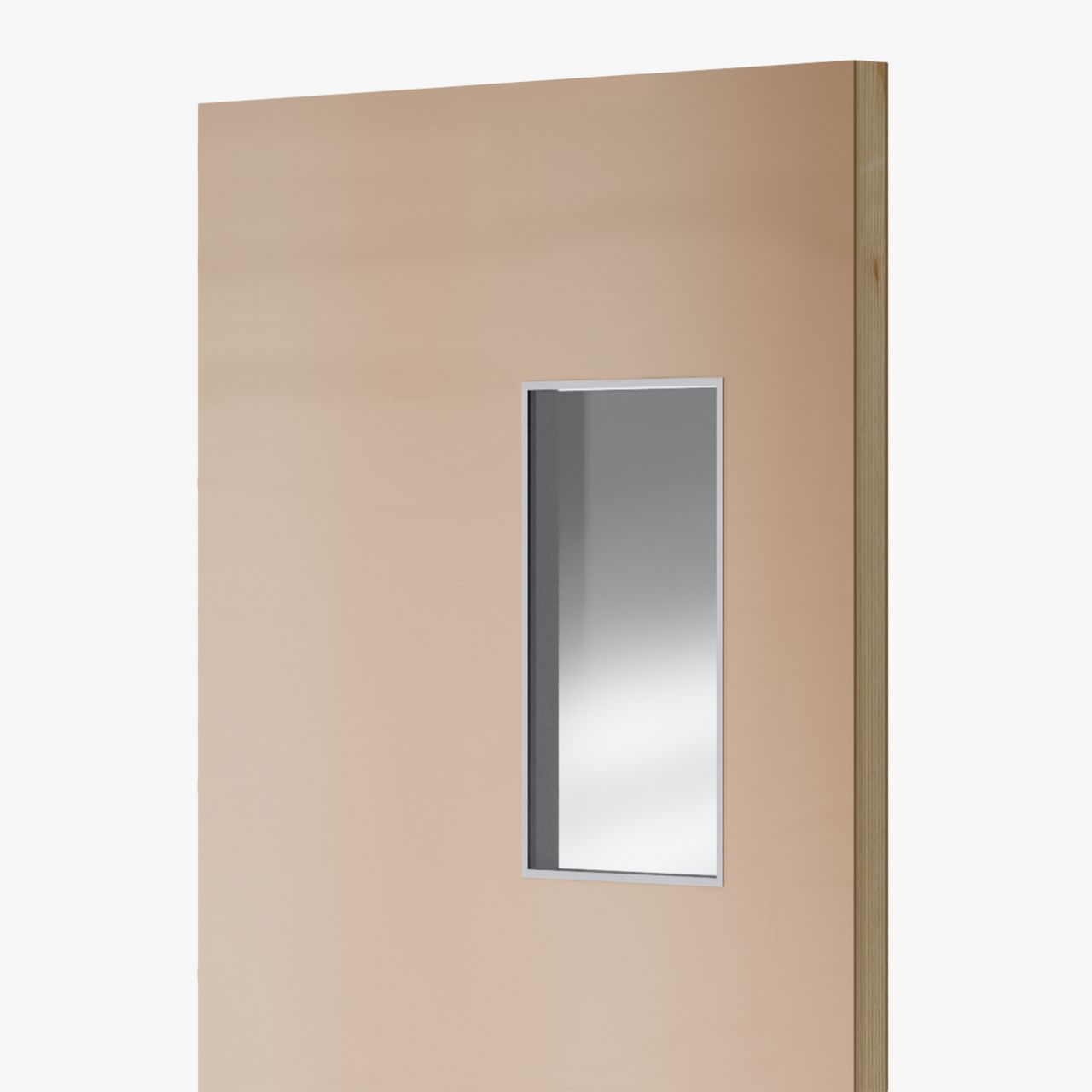

    Glass Style Options: Clear   |   Hush Clear   |   Translucent   |   Laminated

    Strength Options: Standard   |   Toughened

    *Not all widths are available with all profiles. Talk to our team to find the configuration for your door.

  • Spence Doors recommends only pairing a vision panel with a Solid Core door for structural integrity. This is on account of the panel’s weight requiring support; a Solid Core will act as a structural support for the panel whereas a Semi-Solid door does not offer a substrate for the panel to rest on and thereby would require additional supports to be build into the door’s internals.

  • Spence’ Fire-Rated Door Sets are tested and certified to feature vision panels within certain limitations for up to 2 Hours of fire resistance. The maximum area the vision panel can cover in a Spence Fire Door is 65,000mm2 in accordance with AS1530.4 and AS1905.1.

    Options: 13mm clear glass (up to Rw 38 Acoustically Rated)  |  5mm ceramic glass

    Size Options (H x W): 300 x 200  |  600 x 100

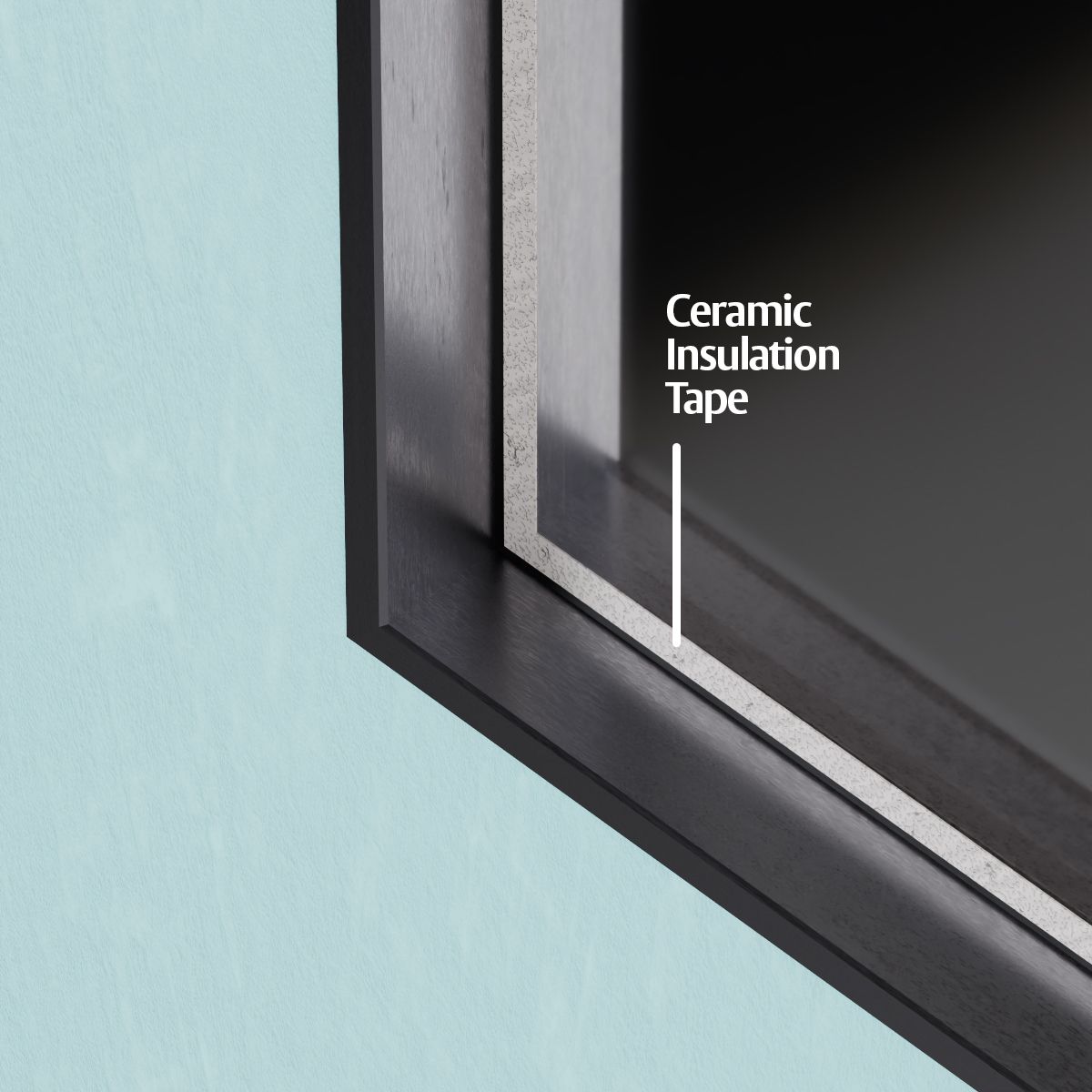

    Beading on a Fire-Rated Vision Panels features ceramic insulating tape (pictured). It is important that this should not be painted over during installation as this can compromise the door set’s fire-resistance and intumescent properties.



Extras

  • Glazing bead along a window / vision panel’s perimeter holds the glass securely in place. The beading also acts as a seal against elements passing through gaps which, in turn, improves insulation qualities.

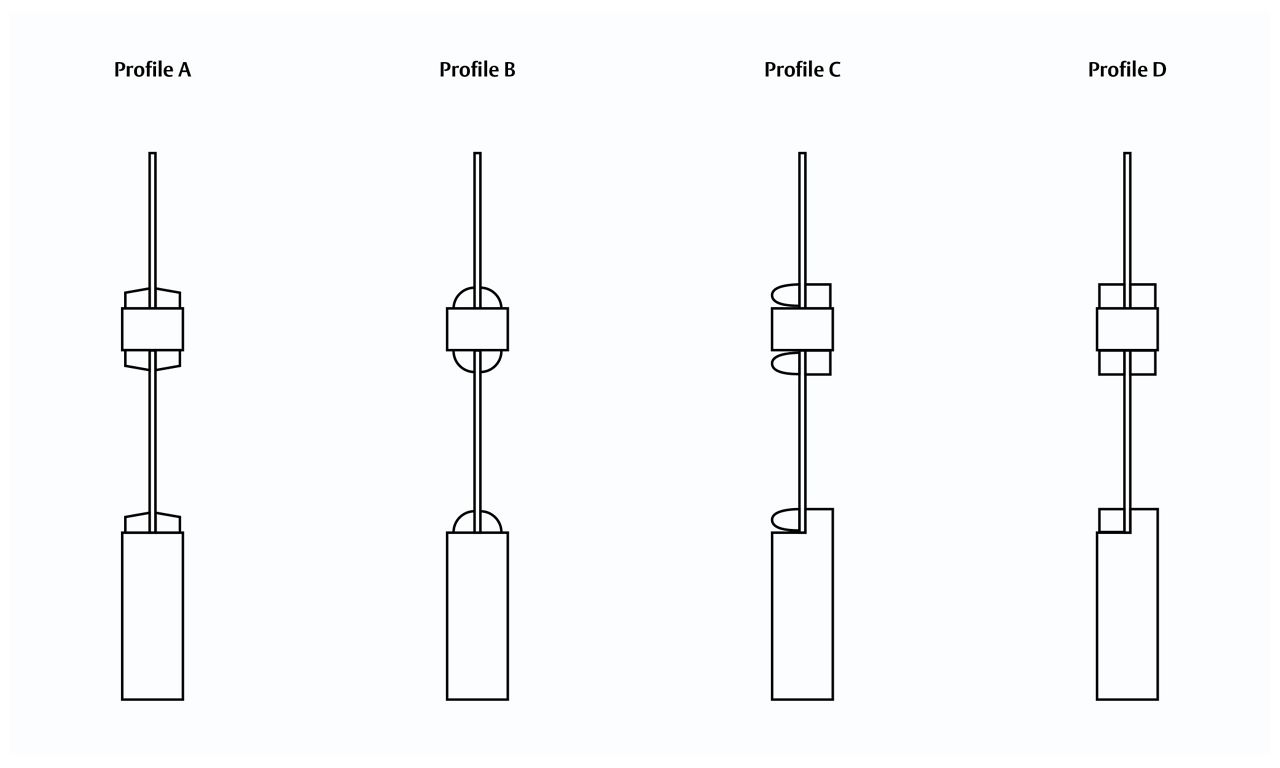

    Spence Doors offers four different profiles of glazing bead (pictured), each differing in look.
